Plug-Inserts for world wide usage
Europe, Swiss, France, Italy, U.S.A., United Kingdom, Australia etc.
Connectors / Sockets
Cold appliance-sockets, cold appliance-plugs, hot appliance-sockets, appliance-sockets for small equipment, extension-cord-connectors
Fuses for production of cord-sets (BS1363)
3A, 5A, 7A, 10A, 13A
Cables
HAR, round, flat, PVC, Rubber, Textil
Others
Adapter, converter, multiple-sockets, switches, filter-coils
Converter European Standard into UK-Standard

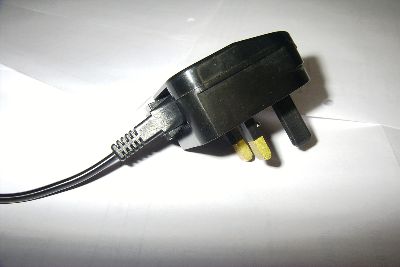

Just insert the Plug into the converter: |  | The Euro Convertor plug (ECP) is an adaptor which converts 2.5A CEE7 (XVI) Europlugs to the BSI363 system format. With its hinged lid, secured with a screw, external fuse access and no loose parts, it is ideal for manufacturers who want to produce one version of their product and then convert certain models for the UK market and other BS1363 markets.
Available with either standard or tamper resistant screw.
TECHNICAL INFORMATION
Voltage 240V 50Hz
Current rating 2.5A Load 600W (max.)
Fuse 3A or (5A) BSI362
Material Thermoplastic PP or Nylon. Cadmium Free
Weight 45g (typical)
STANDARDS
The product is approved to BS5733, BS1363 plug/socket features and BS1362 fuse link. Approved by BSI. Also to PAS003.
COLOURS AVAILABLE
Black / White / Clear (made from polycarbonate)

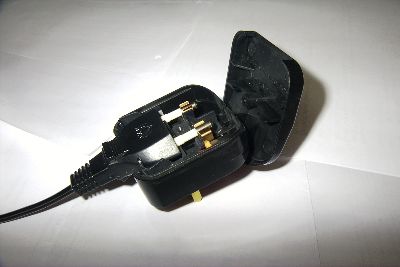

Other colours require a minimum qty of 30,000 pieces Cover snaps shut and secured with screw -ready ! |
